Chargery Products Overview

CHARGERY Power products are designed and manufactured specially for R/C model, from design to delivery, all step is executed according to ISO 9001:2000 and other international standard such as CE, UL. etc.

Make sure to check back frequently as we have many new products to be added shortly.  These products, as with all the CHARGERY Power product line are sure to offer you the ultimate in performance and value.



CHARGERY workshop

CHARGERY products include charger, balancer, power supply and balance charger, they build up a total power solution family for R/C model and E-bike, E-scooter etc.

AC charger built-in cell balancer is in developing. Welcome to back again and consult Chargery

PFC power supply

Model: S600PLUS

  1. Conform to European Commission Regulation no 278/2009 and Energy Star Version 2.0
  2. AC100 ~ 265V input, world wide use
  3. Active PFC: PF>0.99 at 90VAC 100% of load
  4. DC5.0V ~ 26.0V output adjustable for most of applications
  5. Up to 91% of efficiency at 60% of load and AC220V
  6. Digital display output voltage and current on time.
  7. Over current, over voltage, over load and over temperature protection. Resume automatically when troubleshooting.
  8. Short-circuit protection on output, safer and more reliable.
  9. Intelligent cooling fans, adjust speed automatically
  10. 2 outputs can do more chargers or other DC powered device simultaneously.
  11. USB 5V 500mA output
  12. Warranty of 12 months.
S600PLUS user's manual V1.0 (1688K)

Balance charger and discharger

MODEL: 50010B, 5008B, 5006B

Features:

  1. Unique charge architecture make the charger response quickly to any changes of voltage on input and output.
  2. The charger use advanced ADC measurement technology, high accuracy, high voltage and high current detection circuit. The maximum voltage measurements tolerance is within 5mV at up to 10S LiPo battery.
  3. The charger adopts advance balance circuit and Algorithm, constant 1.3A per cell balance current is very useful for large capacity battery pack, the feature can resume all cell voltage balance status at the shortest time.
  4. Over temperature protection make sure the system safety during balance.
  5. Intelligent fan control circuit sense internal temperature via temperature sensor, to thereby control the fan speed.
  6. TFT LCD screen provides rich information including current, voltage, power, capacity, time, working status
    and temperature and so on.
  7. The charger features a maximal safety protection,
    Reversed polarity protection on input and output,
    Anti-spark on input and output
  8. Wrong battery pack connection protection when multi battery pack connected in series on adapter
    board.
  9. Supports upgrading the firmware program by USB port.
50010B
5008B
5006B, 5008B, 50010B manual (2884K )

Intelligent BMS

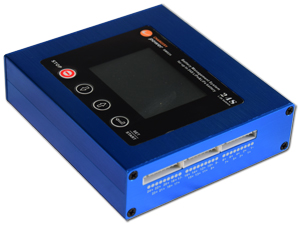

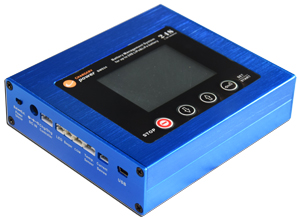

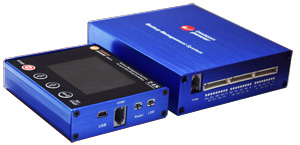

Model: BMS24, 2-24S, 600A charge, 600A discharge

Special Features:

  1. The BMS24 uses advanced ADC measurement technology, high accuracy, high voltage and high current detection circuit. The maximum voltage measurements tolerance is within 8mV at up to 24S LiPo battery (102V)
  2. Charge/discharge current up to 600A.
  3. Support regenerative braking, during braking operation can charge the batter pack and the discharge power (Wh) will decrease to response to the braking power.
  4. 1.2A per cell balance current is very useful for large capacity battery pack, the feature can resume all cell
    voltage balance status at the shortest time. over temperature protection make sure the system safety
    during balance.
  5. BMS24 display battery SOC or called battery gauge similar with car dashboard. Cell count, battery pack voltage and battery gauge (%) is displayed simultaneously.

BMS24 manual (3649K )

BMS24
BMS24

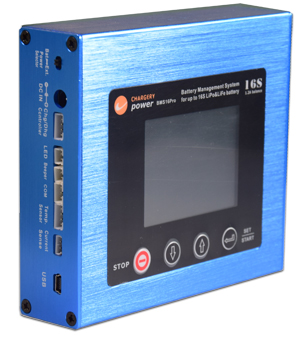

Model: BMS16Pro, 2-16S, 600A charge, 600A discharge

Special Features:

  1. The BMS16Pro uses advanced ADC measurement technology, high accuracy, high voltage and high current detection circuit. The maximum voltage measurements tolerance is within 5mV at up to 16S LiPo battery (69V)
  2. Charge/discharge current up to 600A.
  3. Support regenerative braking, during braking operation can charge the batter pack and the discharge power (Wh) will decrease to response to the braking power.
  4. 1.2A per cell balance current is very useful for large capacity battery pack, the feature can resume all cell
    voltage balance status at the shortest time. over temperature protection make sure the system safety
    during balance.
  5. BMS16Pro display battery SOC or called battery gauge similar with car dashboard. Cell count, battery pack voltage and battery gauge (%) is displayed simultaneously.

BMS16pro manual (4085K )

BMS16Pro


Model: BMS16, 2-16S, 100A charge, 300A discharge

Special Features:

  1. The BMS16 uses advanced ADC measurement technology, high accuracy, high voltage and high current detection circuit. The maximum voltage measurements tolerance is within 5mV at up to 16S LiPo battery (69V)
  2. Charge/discharge current up to 300A.
  3. Support regenerative braking, during braking operation can charge the batter pack and the discharge power (Wh) will decrease to response to the braking power.
  4. BMS16 calculate and display the charge and discharge power (Wh), generally the battery rated power is rated voltage multiply rated battery capacity.
  5. BMS16 features a maximal safety protection, within the range parameters can be setup, BMS16 will alarm and cutoff charge or discharge according to usersí» setup, out of range of parameters, and trigged absolute maximum ratings BMS16 will force to cutoff charge or discharge to prevent the battery from fire.
  6. Minimize the power consumption by draw current from all cells or external power supply.
  7. Supports upgrading the firmware program by USB port.
  8. BMS16 display battery SOC or called battery gauge similar with car dashboard. Cell count, battery pack voltage and battery gauge (%) is displayed simultaneously.

BMS16 maual (7176K )

b
bms16


BMS - battery management system is a intelligent device designed especially for LiPo/LiFe battery pack, generally BMS has the following funcutions,

  1. Monitor and balance each cell voltage
  2. Monitor battery temperature
  3. Monitor charge and discharge current
  4. Monitor SOC or battery gauge
  5. Over voltagea protection during charge
  6. Under voltage protection during discharge
  7. Over current protecion
  8. Over temperature protecion
  9. Short circuit protection
  10. and display, alarm and so on.

Chargery BMS features:

  1. Microprocessor  control the balance
  2. Detect and balance the voltage of each cell automatically
  3. Alarm and cut-off the charging/discharging circuit while detect the any cell voltage over charged or over discharged
  4. LCD display or LED indicate the cell votage and battery gauge.
  5. Low quiescent current design, BMS draw current from all cells, the power consumption is less than 1mA.
  6. AL alloy case

    BMS8 is designed for 3S-8S LiPo/LiFe battery pack.

    16S Li-ion or LiPo BMS is coming soon, it is developped specially for high power LiFe or LiPo battery system.

BMS8
BMS8

BMS8 datasheet (283K )

BMS8Pro datasheet (268K )

High Voltage Super BEC

Chargery SUPER BEC is the most powerful Battery Eliminator Circuit in RC industry, it can handle high voltages and withstand incredible high current loads of 20Amps continuous in so small space. The Chargery SUPER BEC is a glitch free high efficiency, high power switching voltage regulator designed to work with all popular brands of 2.4 GH R/C receivers and servos. It provides safe and consistent power to your R/C receiver and servo(s) that eliminates the need for a separate battery source.

Chargery Super BEC datasheet V1.0(270K)

Switching power supply


From 2012, We will release more high efficiency, Large power switching power supply, it is S series, S1500, S1200 and S600, S400 are released. S series power supply with acitve PFC, can display output voltage and current, the output voltage can be programmed.



The main specification of S1500 v2.1 is as following:

  1. No AC ON/OFF switcher, more reliable when start.
  2. 10-30V, large range output voltage adjustment
  3. 1-60A output current adjustment
  4. 1.8" TFT color LCD display voltage, current and temperature, and output power.
  5. Up to 94% of convert efficiency.
  6. Smaller size and lighter than other brand
  7. Intelligent control output voltage and current by microprocessor, 100% calibration before delivery
  8. Active PFC: smaller AC input current less interference, and Conform to European Commission Regulation no 278/2009 and Energy Star Version 2.0
  9. AC 90-265V worldwide operation: need not any alternative switcher, worldwide safe operation.
  10. Low power consumption (less than 1W) at idle mode.
  11. Over current, over voltage, over load, over temperature, and short circuit protection
  12. Short-circuit protection on output, safer and more reliable.
  13. 2 Intelligent cooling fans speed controlled upon the temperature automatically
  14. 4 outputs can do more chargers simultaneously, 3 pairs 4.0mm gold connector up to 20A each output, one 4.5mm gold connector (XT-90) up to 60A
  15. High power density: 652W/Kg
  16. Start at no load or full load
  17. Approved by CE
  18. 24 months warranty

S1500 user's manual v1.1(288K)

S1500 user's manual v2.0 (292K)

S1500 v2.0
S1500 power on
setup


The main specification of S400 is as following:

  1. Conform to European Commission Regulation no 278/2009 and Energy Star Version 2.0
  2. AC100 ~ 240V input, world wide use
  3. Active PFC: PF>0.99 at 90VAC 100% of load
  4. DC6.0V ~ 15.0V output adjustable for most of applications
  5. Up to 92% of efficiency at 60% of load and AC220V
  6. Digital display output voltage and current on time.
  7. Over current, over voltage, over load and over temperature protection. Resume automatically when troubleshooting.
  8. Short-circuit protection on output, safer and more reliable.
  9. one Intelligent cooling fans turned on at over 45íŠ
  10. 2 outputs can do more chargers or other DC powered device simultaneously.



S400 user's manual (189K)


The main specification of S1200 v1.3 is as following:

  1. AC90 ~ 265V input, world wide safety operation
  2. Active PFC: PF>0.99 at 90VAC, 100% of load
  3. DC11.5V ~ 24.5V output adjustable for most of applications
  4. Up to 94% of efficiency at 80% of load and AC220V
  5. Digital display output voltage and current on time.
  6. Over current, over voltage, over load and over temperature protection. Resume automatically when troubleshooting.
  7. Short-circuit protection on output, safer and more reliable.
  8. 3 Intelligent cooling fans speed controlled at temperatue
  9. 3 outputs can do more chargers or other DC powered device simultaneously.
  10. Warranty of 24 months.

S1200 user's manual (179K)


The main specification of S600 is as following:

  1. AC90 ~ 265V input, world wide safety operation
  2. Active PFC: PF>0.99 at 90VAC, 100% of load
  3. DC10.0V ~ 18.0V output adjustable for most of applications
  4. Up to 92% of efficiency at 60% of load and AC220V
  5. Digital display output voltage and current on time.
  6. Over current, over voltage, over load and over temperature protection. Resume automatically when troubleshooting.
  7. Short-circuit protection on output, safer and more reliable.
  8. 2 Intelligent cooling fans turned on at over 50íŠ
  9. 2 outputs can do more chargers or other DC powered device simultaneously.
  10. Warranty o f 12 months.
S600 user's manual V2.0 (121K)

Cell monitor and saver

Cell monitor mainly applied to monitor cell voltage and sound alarm and high light LED flash when any cell voltage under setup value during flight. So make sure the flight safety. The warning voltage, warning time can be programmed.

Cell saver is for E-bike or E-scooter, detect and display each cell voltage, especially built-in battery gauge, so the battery SOC can be displayed as same as car dash board. During driving, cell saver can alarm and LED flash while any cell voltage under setup, battery temperature over setup and battery SOC under setup. TFT color LCD (128*128 dot matrix) assure the display clearly. high performance 12bit microprocessor and precision operational amplifier get accurate detection.

BM16 v1.3 updated to new feature, extra Alarm port can drive relay cutoff the circuit when over charger or over discharge.

Now 6S, 12S, 16S monitor and saver is available. click the following model for more information.

BM6 BS6 BD6 BM12 BM16LF


Smart Balance Charger

Top quality and smart performance assure the battery pack is balanced and safe.

main features:

  1. Microprocessor control the charge and balance
  2. AL alloy case
  3. Smaller volume
  4. Perfect safety
  5. Automatically monitor battery voltage and current.
  6. LCD display
  7. Easy to use
  8. A123 battery is available

Switching Charger

The series charge is a switching regulator. the output voltage and current is set up before delivery. Main features are as below.

  1. AC 100-240V Worldwide use
  2. Dual colors LED indicator, Red is for "charging", and Green is for "fully charged"
  3. CC/CV charging mode for LiPo/Li-ion and Lead Acid battery
  4. CC Charging mode and - delta V terminate charging for NIMH/NICd battery pack
  5. AC plug and DC connector can be customized

Output voltage and current are customized upon your demands..
