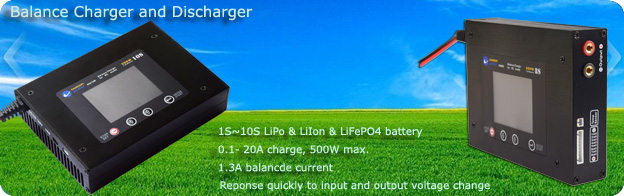

Multifunction battery balance Charger

Model:50010B 5008B 5006B V1.07

5006B,5008B and 50010B are Synchronous Rectification and microprocessor controlled high performance rapid charger/discharger/balancer for NIMH/NICD, LI-ION, LIPO, LIFE and Lead Acid battery packs with cell balancer..

Chargery improved the voltage accuracy to under 5mV even up to 10S lipo cells, that help us to protect and manage each cell voltage during charge and discharge.

Unique balance algorithm realize up to 1.3A current draw from each cell

Creative circuit topology realize response quickly to any instantaneously changes on input and output voltage.

50010B

Special Features

  1. Unique charge architecture make the charger response quickly to any changes of voltage on input and output.
  2. The charger use advanced ADC measurement technology, high accuracy, high voltage and high current detection circuit. The maximum voltage measurements tolerance is within 5mV at up to 10S LiPo battery.
  3. The charger adopts advance balance circuit and Algorithm, constant 1.3A per cell balance current is very useful for large capacity battery pack, the feature can resume all cell voltage balance status at the shortest time. Over temperature protection make sure the system safety during balance.
  4. Charger internal temperature protection. When the internal temperature exceeds the reduce temperature, the output power is automatically decreased; and the charger will stop working when temperature exceeds the shut-down temperature.
  5. Intelligent fan control circuit sense internal temperature via temperature sensor, to thereby control the fan speed.
  6. TFT LCD screen provides rich information including current, voltage, power, capacity, time, working status and temperature and so on.
  7. Supports upgrading the firmware program by USB port
  8. The charger features a maximal safety protection,
  • Reversed polarity protection on input and output,
  • Anti-spark on input and output
  • Wrong battery pack connection protection when multi battery pack connected in series on adapter board.
  • Charge time, charge capacity and battery temperature protection





50010B
5006B
5008B

Specifications

  1. Input voltage: DC 10-28V, 30V max.
  2. Input Current: 25A maximal
  3. Charge current: 0.1-20A, 500W max.
  4. Discharge Current: 0.1-10A, 35W max.
  5. Accuracy of the cell voltage: -5mV/+5mV
  6. Balance current: 1.3A per cell only for LiPoly, Li-ion and LiFePO4 battery pack
  7. Battery Type: LiPoly, Li-ion, LiFePO4, NiMh/NiCd, Pb acid(VRLA) battery pack
50010B



Input panel of 5006B, 5008B, 50010B

Mechanical Characteristics

  1. Size154*114*33 (LWH, mm) or 6.14.481.3 (LWH, inch)
  2. Weight: 680g
  3. Input power cable: AWG14 wire, 600mm length
5006B,5008B,50010B manual (2884K )

Safety Certification: CE

the charger is fully committed to compliance with the European Unions RoHS directive.


USB cable
output cable
adapter board for 50010B adapter board for 5008B
adapter wiref for 50010B adapter wiref for 50010B
Temperature Sensor
