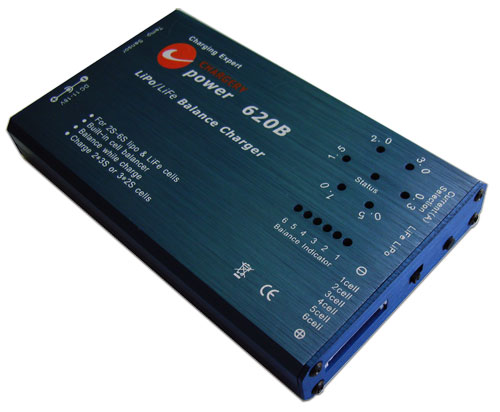

 LiPo/Li-ion and LiFe battery balance Charger |
| |
Model:620B |
|
620B is a high performance Li-ion/LiPo and LiFe battery pack (A123 system) balance charger.
620B is micro-Processor controlled charger with built-in cell balancer.
Easy to use
Compare with the balance charger with LCD and operating button, 620B is very easy to use, what you do is only to choose battery type( lipo or LiFe) and charging current, it starts to charge. very simple and convenient. the balance charge port connect directly to the battery. |
 |
Perfect balancing the Li-Poly and LiFe Batteries
The built-in balancer automatically detect and balance each cell voltage of the 2 to 6 cells in series. It monitors the voltages of each cell during the charge process to equalize the peak voltage. |
 user's manual (179K ) |
|
Temperature sensor
The processor monitors the temperature of the battery being charged during the process For safety reason, the charger can stop the process at high temperature by your set up.
Robust outer aluminum case
High-quality aluminum case is durable and very efficient to cool out the internal heat
Convenient DC Input
Connect to your auto battery or a 12 V power supply, The 620B charge your battery pack at up to 3 A current. |
 |
| |
|
Perfect protection
The 620B has all kinds of protection for reversed polarity (input or output), low input voltage, battery temp. , and charging time.
Deal with several packs at the same time
- Balance charge 3*2S or 2*3S lipo/LiFe battery packs simultaneously by using the adaptor board designed specially. for example, 2* 3S packs with 3AH can be balance charged fully in 90min.
Main Specifications:
- Input Voltage/Current: DC 10-18V,5A
- Output Power: 50W MAX.
- Output Voltage: 25.2V(25.5V MAX.)
- Output Current: 3A, max.
General Specifications:
- Operating Temperature: 0~40℃
- Storage Temperature: -20~85℃
- Operating Relative Humidity: 5~95%RH
Mechanical Characteristics:
- Dimension: 110*68*15 (mm, L*W*H)
- Case Material : Al alloy
- Input lead: silicon wire 1000mm long ending in insulated alligator clips
- Output jack: 7PIN balance connector CCB, conversion wire CEHP-7
- weight: 130g (without cables)
|
|
Safety Certification:CE
620B is fully committed to compliance with the European Union’s RoHS directive. |
| |
Related Products:
Chargery Balance Connector Conversion Board (CCB)
- The CCB is designed for connecting the 620B to the different brand LiPo battery packs with different balance connector, including TP, KOKAM, Flightpower, Polyquest, Hyperion and Electrifly etc.
- The CEHN-7 is used to connect the 620B and CCB.
- Size:15*23*8(mm,L*W*T)
- Weight:10g
|
| |
| All kinds of balance connectors are customized for TP, Flightpower, Hyperion, Kokam, Graupner lipo batteries and so on. |
 |
| Conversion Wire( CEHN-7) |
CCB-723 for 2*3S and 3*2S Kokam and Align batteries pack |
CCB-723TPQF for 2*3S and 3*2S TP, Flightpower and Polyquest, Hyperion batteries pack |
 |
 |
 |
|
CCB-7BC for 2S, 3S, 4S, 5S, 6S TP, Flightpower and Polyquest, Hyperion batteries pack |
CCB-7KT-XH For 2S, 3S, 4S, 5S, 6S Kokam, Align batteries pack |
|
|
|
| 2 to 6 lipo and LiFe cells balance charging system (A6 comes with 620B) |
 |
 |
From AC 110V/220V to LiPo battery packs, CHARGERYpower provide the total balancing charge solution.
The solution includes AC adapter A6 , it is applied to 2 to 6 lipo and LiFe cells in series.
Click connect the 620B to the battery pack for more information. |
| |
