AC-DC Adapter (DC Power Supply)


Before make a purchasing power supply decision, do you consider power efficiency and size? higher efficiency can save energy and electric charge, at the same time smaller size not only easy to take but also save more shipping cost.
As far as large power supply of over 600W, efficiency and size is more important than small and middle power adapter.

Efficiency=Pout/Pin*100%, Pout=Vout*Iout.
Take S1200 as samples, Pout=24V*50A=1200W
If efficiency=94%, means consumptive energy is 72W; it is is 90%, the wasteful energy will be 120W.

AC plug can be customized

Programming Digital Switching Power Supply S1500, S1200 and S600, S400, S600PLUS-- RELEASED

CHARGERY powr supply filter for simple introdution

Model:S600PLUS
  1. Conform to European Commission Regulation no 278/2009 and Energy Star Version 2.0
  2. AC100 ~ 265V input, world wide use
  3. Active PFC: PF>0.99 at 90VAC 100% of load
  4. DC5.0V ~ 26.0V output adjustable for most of applications
  5. Up to 91% of efficiency at 60% of load and AC220V
  6. Digital display output voltage and current on time.
  7. Over current, over voltage, over load and over temperature protection. Resume automatically when troubleshooting.
  8. Short-circuit protection on output, safer and more reliable.
  9. Intelligent cooling fans, adjust speed automatically
  10. 2 outputs can do more chargers or other DC powered device simultaneously.
  11. USB 5V 500mA output
  12. Warranty of 12 months.

S600PLUS user's manual V1.0 (1688K)

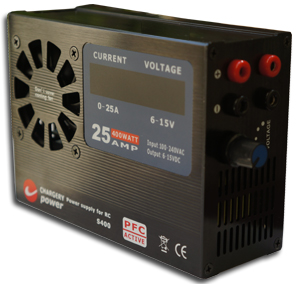

Model:S400
  1. Conform to European Commission Regulation no 278/2009 and Energy Star Version 2.0
  2. AC100 ~ 240V input, world wide use
  3. Active PFC: PF>0.99 at 90VAC 100% of load
  4. DC6.0V ~ 15.0V output adjustable for most of applications
  5. Up to 92% of efficiency at 60% of load and AC220V
  6. Digital display output voltage and current on time.
  7. Over current, over voltage, over load and over temperature protection. Resume automatically when troubleshooting.
  8. Short-circuit protection on output, safer and more reliable.
  9. one Intelligent cooling fans turned on at over 45℃
  10. 2 outputs can do more chargers or other DC powered device simultaneously.

S400 user's manual (189K)

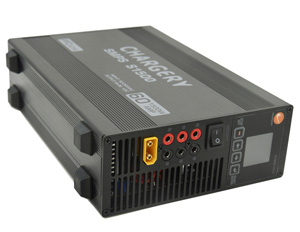

Model:S1500 V2.1

  1. No AC ON/OFF switcher, more reliable when start.
  2. 10-30V, large range output voltage adjustment
  3. 1.8" TFT color LCD display voltage, current and temperature, and output power.
  4. Up to 94% of convert efficiency.
  5. Smaller size and lighter than other brand
  6. Intelligent control output voltage and current by microprocessor, 100% calibration before delivery
  7. Active PFC: smaller AC input current less interference, and Conform to European Commission Regulation no 278/2009 and Energy Star Version 2.0
  8. AC 90-265V worldwide operation: need not any alternative switcher, worldwide safe operation.
  9. Low power consumption (less than 1W) at idle mode.
  10. Over current, over voltage, over load, over temperature, and short circuit protection
  11. Short-circuit protection on output, safer and more reliable.
  12. 2 Intelligent cooling fans turned on upon the temperature automatically
  13. 4 outputs can do more chargers simultaneously, 3 pairs 4.0mm gold connector up to 20A each output, one 4.5mm gold connector (XT-90) up to 60A
  14. High power density: 652W/Kg
  15. Start at no load or full load
  16. Approved by CE
  17. 24 months warranty



S1500 v2.0
S1500 power off
S1500 power on
S1500 user's manual v1.1 (288K) S1500 user's manual v2.0 (292K)


Model:S600 V2.0

  1. AC90 ~ 265V input, world wide use
  2. Active PFC: PF>0.99 at 90VAC 100% of load
  3. DC10.0V ~ 18.0V output adjustable for most of applications
  4. Up to 92% of efficiency at 60% of load and AC220V
  5. Digital display output voltage and current on time.
  6. Over current, over voltage, over load and over temperature protection. Resume automatically when troubleshooting.
  7. Short-circuit protection on output, safer and more reliable.
  8. 2 Intelligent cooling fans turned on at over 55℃
  9. 2 outputs can do more chargers or other DC powered device simultaneously.
  10. USB 5V 500mA output
  11. Warranty of 12 months.

S600 power supply

S600 user's manual V2.0 (121K)



Model:S1200 v1.3

  1. AC90 ~ 265V input, world wide safety operation
  2. Active PFC: PF>0.99 at 90VAC, 100% of load
  3. DC11.5V ~ 24.5V output adjustable for most of applications
  4. Up to 94% of efficiency at 80% of load and AC220V
  5. Digital display output voltage and current on time.
  6. Over current, over voltage, over load and over temperature protection. Resume automatically when troubleshooting.
  7. Short-circuit protection on output, safer and more reliable.
  8. 3 Intelligent cooling fans turned on at over 50℃
  9. 3 outputs can do more chargers or other DC powered device simultaneously.
  10. Warranty of 24 months.

Chargery S1200 user's manual (179K)



A1 user's manual (75K ) A6 user's manual (70K )
NEW A12 user's manual (141K ) A8 user's manual (108K )
250W power supply
A30 user's manual (96K ) A20 user's manual (136K )

Model
Descriptions
AC 100-240V Input, output DC 12V 1.5A MAX. Power 12V Charger.
AC 100-240V Input, output DC 12V 4A MAX. Power 12V Charger.
AC 100-240V Input, output DC 12V 6A MAX. Power 12V Charger, such as 620B

A8

AC 100-240V Input, output DC 12V 8A MAX. Power 12V Charger.

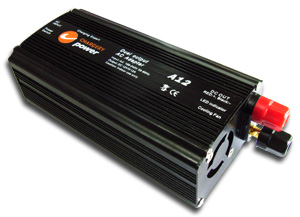

new A12

AC 90-265V Input, output DC 12V 12.5A MAX. Power 12V Charger, such as 680B
AC 100-240V Input, output DC 14V 16A MAX. Power 12V Charger, such as 680B+
AC 100-240V Input, output DC 14V 25A MAX. Power 12V Charger.
S1500 AC90-265V Input, output DC 10V-30V 60A 1500W max.
AC90-265V Input, output DC 11.5V-24.5V 50A 1200W max.
AC90-265V Input, output DC 10.0V-18.0V 33A 600W max.
S400 AC100-240V Input, output DC 6.0V-15.0V 25A 600W max.

A164

AC 100-240V Input, output DC 16V 4A MAX. Power most of notebook PCs etc..
