AC-DC Adapter ( Programming Digital PFC Power Supply)

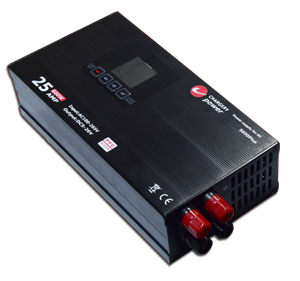

Model: S600PLUS V2.0

As same as S1500, S600PLUS still features High efficiency and Smaller size, Active PFC make the lower input current, save energy and more reliable. High PF improve the energy consumption from main power grid evidently.

S600PLUS is programming digital power supply with Active PFC and output 26V 25A 600W maximal at 100~265VAC, the power supply reached up to 91% at 60% of load and AC220V, ultra low power consumption make sure its internal temperature under 85℃ and realize components' performance.

Active PFC and Synchronous Rectification assure S600PLUS's high performance and reliability.

AC 100~265V input, no matter where you are, S600PLUS can work perfectly. it is also equipped with both US / Japan and Europe AC plugs, world wide use need not any alternative switcher.

Adjustable output voltage from 5.0V-26.0V is convenient for most of applications. Connect to any DC charger which is supposed to be powered by DC 10V~30V, the S600PLUS will provide up to 25Amps 600 Watts maximal.

S600PLUS user's manual V2.0 (1688K)

Features:

  1. Digital display output voltage and current on time.
  2. Over current, over voltage, over load and over temperature protection. Resume automatically when troubleshooting.
  3. Short-circuit protection on output, safer and more reliable.
  4. Intelligent cooling fans, adjust speed automaticall acooridng termperature
  5. 2 outputs can do more chargers simultaneously.
  6. High power density: 495W/Kg
  7. Approved by CE




Input/Output Specifications:

  1. Input Voltage:   AC 110V/220V, 50/60Hz
  2. Range Voltage: AC 100-265V, 47~63Hz
  3. Max Current : 8A @90VAC, 3.3A @ 220VAC
  4. Efficiency: 91% at 60% load and 220V.
  5. Active PFC: PF>0.99 at 90VAC, 100% of load
  6. Output Power:   600W MAX.
  7. Output Voltage: 5.0V~26.0V adjustable
  8. Output Current: 0~25A(26A MAX.)
  9. USB port output: DC5V, 0~500mA

General Specifications:

  1. Operating Temperature:   0~50℃
  2. Storage Temperature:      -20~85℃
  3. Operating Relative Humidity: 5~95%RH
  4. Withstanding Voltage:  AC 2000V(Min), 5mA(Max)
  5. Insulation Resistance:  DC500V  100MΩ(Min)

Mechanical Characteristics:

  1. Dimension: 223*106*55 (mm, L*W*H) or 18.7*4.2*2.16 (inch)
  2. AC Plug: Customized according to your demand
  3. Case Material : AL alloy
  4. DC output : two pairs 4mm gold banana jack
  5. Net weight: 1.25Kg without input cable.

Safety Certification:CE

S600PLUS is fully committed to compliance with the European Union’s RoHS directive.

4mm gold banana output connector

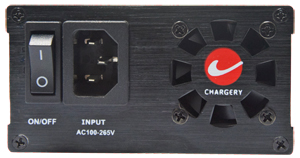

AC plug can be customized
