CHARGERY Power is focused on providing enabling charging and battery technologies and services for the R/C model and E-Vehicle including airplanes, boats, cars, electric flight, helicopters and electric vehicles.

AC & DC dual input charger built-in cell balancer is released. Welcome to back again and consult Chargery.

Main features:

1. AC/DC dual input and identify automatically when AC / DC connected simultaneously
2. 100W maxmial discharge need not any external load
3. 1.2A balance curren per cell
4. Over current protection
5. Over voltage protection
6. Charge power protection
7. Over temperature protection
8. Anti spark on battery connection
9. Reverse polarity protection of battery connection
10. Wrong battery connection protection when multi battery pack connected in series on adapter board.
11. LCD display battery voltage, charge current, charging time, capacity charged
12. Charge terminal voltage, terminal current and cell count is programmed
13. Supports upgrading the firmware program by USB port.

Specifications

1. Input voltage: DC 10-28V, 30V max. or AC 100-265V.
2. Input Current: 25A maximal at DC input, and 15Arms at AC110V input
3. Charge current: 0.1-20A, 500W max. at DC input,? or 1-40A, 1500W max. at AC input
4. Discharge Current: 0.1-40A, 100W max.
5. Accuracy of the cell voltage: -5mV/+5mV
6. Balance current: 1.2A per cell only for LiPoly, Li-ion, LiTo and LiFePO4 battery pack
7. Battery Type:1-12S LiPoly, Li-ion, LiHV, LiTo, LiFePO4, NiMh/NiCd, Pb acid(VRLA) battery pack

Main features:

1. Over current protection
2. Over voltage protection
3. Charge power protection
4. Over temperature protection
5. Anti spark on battery connection even 100V battery connect to charger
6. Reverse polarity protection of battery connection
7. Prevent any cell from over charging, adjust charge current automatically fit with Chargey BMS
8. LCD display battery voltage, charge current, charging time, capacity charged
9. Charge terminal voltage, terminal current and cell count is programmed.

Specifications

1. Input voltage: AC 90-265V
2. Input RMS Current: 18A maximal
3. Charge current: 1-25A, 1500W max.

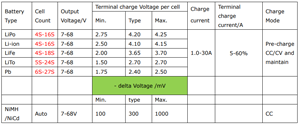

4. Battery Type:
   • 4S-24SLiPoly, Li-ion,
   • 5S-28SLiFePO4,
   • 7S-36S LiTo,
   • 10S-68S NiMh/NiCd,
   • 6S-41S Pb acid(VRLA)

C10325 can work on Auto mode and normal mode, on Auto mode, Connec to AC power or battery pack, the charger will start to charge automatically, need not any setup and other operation. to set up Auto mode,

please down load the video for details .

Chargery released Balance charger and discharger which is applied to 1 to 10S lipo, Lion, LiFe cells, NIMH&NICD, and Pb battery (VRLA, lead battery).

Chargery improved the voltage accuracy t, under 5mV even up to 10S lipo cells, that help us to protect and manage each cell voltage during charge and discharge.

Unique balance algorithm realize up to 1.3A current draw from each cell

Creative circuit topology realize response quickly to any instantaneously changes on input and output voltage.

500W balance charger is updated to V1.12

1. 10-28V DC input
2. 0.1-20A charge, 500W max.
3. Up to 10A discharge 35W max.
4. 1.3A balance current per cell
5. 5mV cell voltage accuracy
6. Update firmware by USB port from PC
7. Size：154*114*33 (L×W×H, mm) or 6.1×4.48×1.3 (L×W×H, inch)

5006B,5008B,50010B manual v1.12T(751K )

Chargery released BMS (Battery Management System), which is applied to 2 to 24S lipo & LiFe cells . We focus on developing the advanced balance technology to meet different applications.

Chargery improved the voltage accuracy to under 5mV, that help us to protect and manage each cell voltage and SOC.

BMS for up to 24S lipo & LiFe & LiTo cells is released

Cell impedance measurment when discharge or charge

Model: BMS24T, for 2S-24S LiPo, LiFe & LiTo cell

old BMS24T has not com3 port on left panel, its Main unit final version is V1.18, LCD final version is V1.22v.

NEW main unit can be updated to V4.05, and NEW LCD uint can be updated to V4.02

1. Up to 600A charge,
2. Up to 600A discharge
3. 1.2A balance current per cell
4. Update firmware by USB port from PC
5. Support regenerative braking, during braking operation can charge the batter pack and the discharge power (Wh) will decrease to response to the braking power.

Model: BMS16T, for 2S-16S LiPo, LiFe & LiTo cell

updated to V4.05

1. Up to 600A charge,
2. Up to 600A discharge
3. 1.2A balance current per cell
4. Update firmware by USB port from PC
5. Communication with external device by RS232
6. 12V 3A drove 600A DC contactor
7. Support regenerative braking, during braking operation can charge the batter pack and the discharge power (Wh) will decrease to response to the braking power.

Model: BMS8T, for 2S-8S LiPo, LiFe & LiTo cell

updated to V4.05

1. Up to 600A charge,
2. Up to 600A discharge
3. 1.2A balance current per cell
4. Update firmware by USB port from PC
5. Communication with external device by RS232
6. 12V 3A drove 600A DC contactor
7. Support regenerative braking, during braking operation can charge the batter pack and the discharge power (Wh) will decrease to response to the braking power.

Model: BMS16, 2-16S, Update to V2.0 (blue case), 300A charge and discharge, 600A burst,

Special Features:

1. The BMS16 uses advanced ADC measurement technology, high accuracy, high voltage and high current detection circuit. The maximum voltage measurements tolerance is within 5mV at up to 16S LiPo battery (69V)
2. Charge/discharge current up to 300A.
3. BMS16 calculate and display the charge and discharge power (Wh), generally the battery rated power is rated voltage multiply rated battery capacity.
4. TFT LCD screen that provides rich information including current, voltage, power, capacity, control status, SOC and temperature and so on.
5. BMS16 features a maximal safety protection, within the range parameters can be setup, BMS16 will alarm and cutoff charge or discharge according to users’ setup, out of range of parameters, and trigged absolute maximum ratings BMS16 will force to cutoff charge or discharge to prevent the battery from fire.
6. Minimize the power consumption by draw current from all cells or external power supply.
7. Dual power design, the unit can be powered by all cells or external power supply.
8. Detect cell count at any time, and compare with the count detected when switch on first time. If it is not uniformity, the device will alarm and cutoff charge or discharge according to users’ setup, the feature can prevent any cell connection from loosing.
9. Sound alarm and LED alarm will be triggered when any warning events happened, and then wait several seconds cut off or NOT charge or discharge. The delay time can be programmed.
10. Charge relay and discharge relay are controlled independently.
11. Two temperature sensors monitor battery temperature on different location.
12. Supports upgrading the firmware program by USB port.
13. BMS16 provide users the maximal flexibility, key parameters can be programmed.
14. BMS16 display battery SOC or called battery gauge similar with car dashboard. Cell count, battery pack voltage and battery gauge (%) is displayed simultaneously.
15. In case that the battery pack need not be charged and discharged, Press STOP button enter into sleep mode to save energy consumption. Charge and Discharge is cut off, LCD back light is off. Press any key to resume normal work mode.

BMS16 manualV1.16 (1385K )

BMS16 manualV2.0 (1580K )

Testing report in German, click the following for details:
S600 Testing report in Germany.
S1200 testing report in Germany.
BEC testing report in Germany.

Model: CPBECLV

Charger BECLV takes input voltage up to 25V (6S) and steps it down to a user-selectable voltage, and withstand high current loads of 10Amps continuous.

1. Input: 2S~6S LiPo battery
2. Output: DC5.4V, 5.9V, 7.4V ,8.4V, 10A continue, 15A burst at under 12V input, and 8A continue, 12A burst at under 25V
3. Short circuit protection on input and output
4. Warranty of 6 months.

Chargery BECLV datasheet V1.0(174K)

Testing report in Germany by www.rc-heli-action.de (1620K) .

Model: CPBEC20A

Charger Super BEC is the most powerful Battery Eliminator Circuit in RC industry, it can handle high voltages up to 60V and withstand incredible high current loads of 20 Amps continuous in so small space. It is designed especial for digital Servo.

1. Input: 3S~14S LiPo battery
2. Output: DC5.5V, 6.0V, 7.4V ,8.4V, 20A continue, 25A burst at 8.4V
3. 10V over voltage protection on output
4. Short circuit protection on input and output
5. Output power: 210W max.
6. Warranty of 12 months.

Chargery Super BEC datasheet V1.0(270K)

Testing report in Germany by www.rc-heli-action.de (1620K) .

Model: S1500 v2.0

1. No AC ON/OFF switcher, more reliable when start.
2. 10-30V, large range output voltage adjustment
3. 1.8" TFT color LCD display voltage, current and temperature, and output power.
4. Up to 94% of convert efficiency.
5. Smaller size and lighter than other brand
6. Intelligent control output voltage and current by microprocessor, 100% calibration before delivery
7. Active PFC: smaller AC input current less interference, and Conform to European Commission Regulation no 278/2009 and Energy Star Version 2.0
8. AC 90-265V worldwide operation: need not any alternative switcher, worldwide safe operation.
9. Low power consumption (less than 1W) at idle mode.
10. Over current, over voltage, over load, over temperature, and short circuit protection
11. Short-circuit protection on output, safer and more reliable.
12. 2 Intelligent cooling fans turned on upon the temperature automatically
13. 4 outputs can do more chargers simultaneously, 3 pairs 4.0mm gold connector up to 20A each output, one 4.5mm gold connector (XT-90) up to 60A
14. High power density: 652W/Kg
15. Start at no load or full load
16. Approved by CE
17. 24 months warranty

Testing report in German by www.rc-network.de

S1500 user's manual v1.1 (288K)

S1500 user's manual v2.0 (292K)

Model: S600PLUS V2.0

1. Conform to European Commission Regulation no 278/2009 and Energy Star Version 2.0
2. AC100 ~ 265V input, world wide use
3. Active PFC: PF>0.99 at 90VAC 100% of load
4. DC5.0V ~ 26.0V output adjustable for most of applications
5. Up to 91% of efficiency at 60% of load and AC220V
6. Digital display output voltage and current on time.
7. Over current, over voltage, over load and over temperature protection. Resume automatically when troubleshooting.
8. Short-circuit protection on output, safer and more reliable.
9. Intelligent cooling fans, adjust speed automatically
10. 2 outputs can do more chargers or other DC powered device simultaneously.
11. USB 5V 500mA output
12. Warranty of 12 months.

S600PLUS user's manual V2.0 (1688K)

Model: S1200 v3.0

1. Conform to European Commission Regulation no 278/2009 and Energy Star Version 2.0
2. AC90 ~ 265V input, world wide use
3. Active PFC: PF>0.99 at 90VAC 100% of load
4. DC11.5V ~ 24.5V output adjustable for most of applications
5. Up to 94% of efficiency at 60% of load and AC220V
6. Digital display output voltage and current on time.
7. Over current, over voltage, over load and over temperature protection. Resume automatically when troubleshooting.
8. Short-circuit protection on output, safer and more reliable.
9. 3 Intelligent cooling fans turned on at over 50℃
10. 3 outputs can do more chargers or other DC powered device simultaneously.
11. Warranty of 24 months.

Chargery S1200 user's manual v3.0(179K)

Testing report in Germany by www.mfi-magazin.com (907K) .

S1200 power 3 chargers simultaneously video on you tube

Testing report in German by www.elektromodellflug.de
