Smart Balancer for LiPo/Li-ion batteries pack
BMS24

Model:DCC v1.0

The DC contactor is designed special work with CHARGERY BMSí», the following are some features: ?

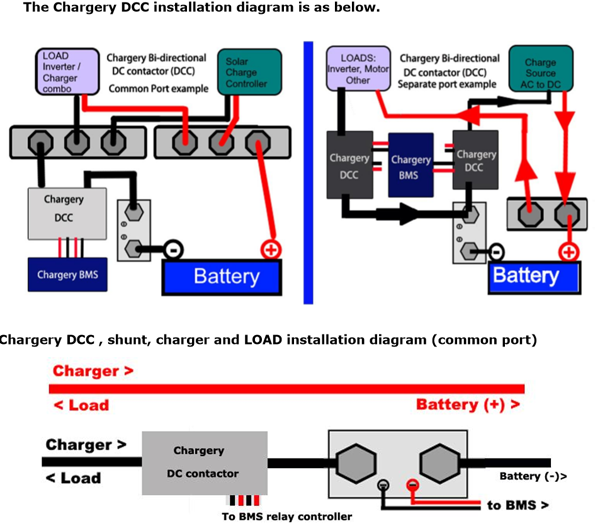

  • Bi-directional connection, one DCC can be used in a Common port such as a Solar system, instead of two SSR's (Solid State Relays) or conventional relays.
  • The DCC has a Built-in the surge suppressing circuit, thereby eliminating the need for the additional Relay Delay Time board which is used to avoid a surge current when starting to charge or discharge. For other SSR's or mechanical relay, please consider the surge current potentials seriously and make a suitable plan for using a delay board as applicable. ?
  • Over temperature protection. If internal temperatures over heat, the contactor will shut off. ?
  • 1 Intelligent cooling fans turned on automatically





100A DCC
DCC-100HB, 100A 100V
200A DCC 300A DCC
DCC-200HB, 200A 100V DCC-300HB, 300A 100V
600A DCC
DCC Connect to BMS8T DCC-600HB, 600A 100V

Protection Functions:

  1. Over temprature protection
  2. Built-in precharge circuit
  3. 12V dual control signal input



DC contactor manual (1146K)

INPUT










Accessories

connection wire for common port , 600mm connection wire for separate port , 600mm


Safety Certification:CE

BMS24 is fully committed to compliance with the European Unioní»s RoHS directive.
