2-6S lipo batery balance charger
LiPo/Li-ion and LiFe battery balance Charger

Model:630B

630B is a high performance Li-ion/LiPo  and LiFe battery pack (A123 system) balance charger.

630B is micro-Processor controlled charger with built-in cell balancer.

Easy to use
Compare with the balance charger with LCD and operating button, 630B is very easy to use, what you do is only to choose battery type( lipo or LiFe) and charging current,  it starts to charge. very simple and convenient. the balance charge port connect directly to the battery.

Perfect balancing the Li-Poly and LiFe Batteries
The built-in balancer automatically detect and balance each cell voltage of the 2 to 6 cells in series. It monitors the voltages of each cell during the charge process to equalize the peak voltage.
user's manual (184K )

Temperature sensor
The processor monitors the temperature of the battery being charged during the process For safety reason, the charger can stop the process at high temperature by your set up.

Robust outer aluminum case
High-quality aluminum case is durable and very efficient to cool out the internal heat

Convenient DC Input
Connect to your auto battery or a 12 V power supply, The 630B charge your battery pack at up to 3 A current. as far as a 4.5AH 22.2V batter pack, the charging time is also 90-120min at most. for the 1.5AH 22.2V battery pack, the charging time will be 30-40min, more capacity of battery or bigger difference of cell voltage, more charging time.



Perfect protection
The 630B has all kinds of protection for reversed polarity (input or output), low input voltage, battery temp. , and charging time.

Deal with several packs at the same time

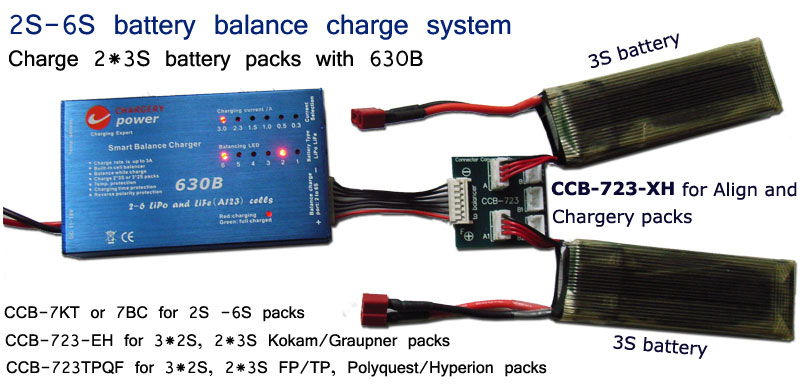

  1. Balance charge 3*2S or 2*3S lipo/LiFe battery packs simultaneously by using the adaptor board designed specially. for example, 2pcs 3S packs with 3AH can be balance charged fully in 60min.

Main Specifications:

  1. Input Voltage/Current:   DC 10-18V,8A
  2. Output Power: 75W MAX.
  3. Output Voltage:  25.2V(25.5V MAX.)
  4. Output Current:  3A, max.

General Specifications:

  1. Operating Temperature: 0~40íŠ
  2. Storage Temperature:  -20~85íŠ
  3. Operating Relative Humidity:  5~95%RH

Mechanical Characteristics:

  1. Dimension: 107*64*24(mm, L*W*H)
  2. Case Material : Al alloy
  3. Input lead: silicon wire  300mm long ending in insulated alligator clips
  4. Output jack: 7PIN balance connector CCB, conversion wire CEHP-7
  5. weight: 180g (without cables)


Safety Certification:CE

630B is fully committed to compliance with the European Unioní»s RoHS directive.



Related Products:

Chargery Balance Connector  Conversion Board (CCB)

  1. The CCB is designed for connecting the 630B to the different brand LiPo battery packs with different balance connector, including TP, KOKAM, Flightpower, Polyquest, Hyperion and Electrifly etc.
  2. The CEHP-7 is used to connect the 630B and CCB.
  3. Size:15*23*8(mm,L*W*T)
  4. Weight:10g

All kinds of balance connectors are customized for TP, Flightpower, Hyperion, Kokam, Graupner lipo batteries and  so on.
Conversion Wire( CEHP-7)
CCB-723 for 2*3S and 3*2S Kokam and Align batteries pack

CCB-723TPQF for 2*3S and 3*2S TP, Flightpower and Polyquest, Hyperion batteries pack

Adapter wire adapter board adapter board
CCB-7BC for 2S, 3S, 4S, 5S, 6S TP, Flightpower and Polyquest, Hyperion batteries pack
CCB-7KT For 2S, 3S, 4S, 5S, 6S Kokam, Align batteries pack
adapter board
Adapter board
2 to 6 lipo and LiFe cells balance charging system (A8 comes with 630B)
the most simple 6S balance charger Adapter, DC 12v 8A

From AC 110V/220V to LiPo battery packs, CHARGERYpower provide the total balancing charge solution.

The solution includes AC adapter A8 , it is applied to 2 to 6 lipo and LiFe cells in series.

Click connect the 630B to the battery pack for more information.
