LiPo/Li-ion/LiFe battery balance Charger

Model:0410B

0410B is a 4 in 1 digital LCD balance charger / discharger/ balancer / cell monitor, it is for 2S-4S LiPo & LiFe battery.

2*2S battery can be charged simultaneously.

0410B can charge your battery at up to 9.9A, 80W MAX. Discharge current is up to 500mA.

0410B user's manual (311K )

0410B will be very easy to use, it can charge or discharge your battery pack while balancing. Press the SET button set the charge current or discharge terminal cell voltage you want. 0410B will display total battery pack voltage, cell voltage, running time, charge current and battery gauge.
As discharger, 0410B can discharge your battery to the voltage you set. for example, if the cell voltage you set is 3.8V, the charger will discharge the battery to STORAGE status. During discharge, 0410B will balance cells, and display total battery pack voltage, cell voltage, difference of cell voltage and run time. when the discharge over, the battery will resume balanced status.
As battery checking tool and balancer, the charger will be perfect for your application.


Robust outer aluminum case
High-quality aluminum case is durable and very efficient to cool out the internal heat.

Perfect protection
The 0410B has all kinds of protection for reversed polarity( input or output), low input voltage and over input voltage.

Intelligent cooling fan
when the charger internal temperature reaches 40 degree, the cooling fan will start automatically.

Main Specifications:

  1. Input Voltage/Current:   DC 10-18V,10A
  2. Charge Power: 80W MAX
  3. Battery type: 2S-4S lipo/li-ion/liFe
  4. Charge Current:  0.5 - 9.9A.
  5. Discharge current: 500mA max.
  6. Balancing current: 500mA
  7. Balance Accuracy: < 10mV
  8. Display resolution: 0.001V
  9. Detection precision: 0.005V

General Specifications:

  1. Operating Temperature: 0~40íŠ
  2. Storage Temperature:  -20~85íŠ
  3. Operating Relative Humidity:  5~95%RH

Mechanical Characteristics:

  1. Dimension: 125*70*25(mm, L*W*H)
  2. Case Material : Al alloy
  3. Balance port: JST-XH connector for 2S, 3S, 4S battery,
  4. weight: 240g


Safety Certification: CE

0410B is fully committed to compliance with the European Unioní»s RoHS directive.

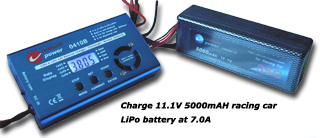

Charging 11.1V 5000mAH racing car LiPo battery CW3: output power lead, 4mm banana with Deans plug
4mm gold banana to DEANS plug
CCB-5TPQF : Adapter Board for 2S,3S,4S Polyquest and TP battery  CEHP-5X : Adapter wire

All kinds of balance connectors are customized for TP, Flightpower, Hyperion, Kokam, Graupner lipo batteries and  so on.


Smart Balancers:
Balance chargers:
