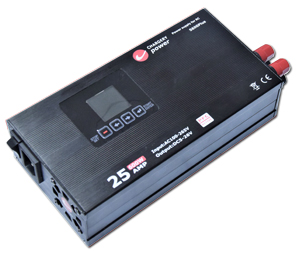

S600Plus is updated to V1.4, it is designed special for 500W charger, output 26V 25A 600W max. output voltage and curren is adjustable.
S400 with PFC power supply is released. output DC 6-15V 25A, 400W max
Super BEC is available, up to 14S lipo battery as input, and output up to 25A at 8.4V.

.




Contact Us
Add: 216, Building 9# ,
Zhongxing industrial Zone, Nanshan,
ShenZhen, China
Zip Code: 518052
Tel:
+86-755-2643 6165
Fax:
+86-755-2641 2865

Email:
jasonwang3a@163.com

admin@chargery.com.cn


FAQ
Buy on chargerystore that is our officical store online
If you need a large volume, please visit here or send an email direclty

Email Us


Authorized Distributor

Chargery official Store
online Shop
Buy Online in China

NEXUS
the United Kingdom
ProgressiveRC
moistgarden.com
USA




swaytronic
Switzerland
cake
Sweden

TIPs for buying
If you need our products but you do not find any distributors or dealers or any online shops who are selling CHARGERY products in your country or any convenient place, please email me directly to buy our products, and you can pay by PayPal.






BMS24



CHARGERY Power is focused on providing enabling charging and battery technologies and services for the R/C model and E-Vehicle including airplanes, boats, cars, electric flight, helicopters and electric vehicles.

AC & DC dual input charger built-in cell balancer is released. Welcome to back again and consult Chargery.


Chargery Product list (2021.8) is available. please down load for more interesting products.

New Video
the best and coolest bike is CAKE KALK, built-in Chargery BMS24T and powered by 1500W charger C10325.
C10325 charge Cake Kalk bike
Chargery BMS update to V4.0
Current Calibrating shunt on BMS.
A installation video of the BMS24T to a 24S LiPo battery
Discharge on BMS16T at 1.2A and 30A
Charge 6S 6.5AH 35C lipo battery with S600PLUS and 50010B

Remote control charge current on C6050A
More video-----

more Update information, please visit update page.

Similar with popular 24S 1500W charger C10325, the new charger C6050 can charge 4S to 13S lipo battery at 55A, 3000W. C6050A and C6050B is available, C6050A can communicate with external device and charge current can be controlled by remote device. C6050B can work on auto charge mode as same as C10325.

Model: C6830A v1.0, C6830B v1.0 1500W 60A 16S Battery charger

Specifications

  1. Input voltage: AC 90-265V
  2. Input RMS Current: 18A maximal
  3. Charge current: 1-30A, 1500W max.
  4. Battery Type:
    • 4S-16S LiPoly, Li-ion,
    • 4S-18S LiFePO4,
    • 5S-24S LiTo,
    • 10S-45S NiMh/NiCd,
    • 6S-27S Pb acid(VRLA)

C6830 can work on Auto mode and normal mode, on Auto mode, Connec to AC power or battery pack, the charger will start to charge automatically, need not any setup and other operation.

to set up Auto mode, please down load the video for details.

Setup Auto Mode on C6830 Video



C6830 manual v1.0 (1202K)

C6830
16S 30A 1500W charger and BMS16T
C6830_BMS16T
Model: C3060A v1.0, C3060B v1.0 1500W 60A 8S Battery charger

Specifications

  1. Input voltage: AC 90-265V
  2. Input RMS Current: 18A maximal
  3. Charge current: 1-60A, 1500W max.
  4. Battery Type:
    • 1S-7S LiPoly, Li-ion,
    • 1S-8S LiFePO4,
    • 2S-11S LiTo,
    • 3S-20S NiMh/NiCd,
    • 2S-12S Pb acid(VRLA)

C3060 can work on Auto mode and normal mode, on Auto mode, Connec to AC power or battery pack, the charger will start to charge automatically, need not any setup and other operation.

to set up Auto mode, please down load the video for details.

Setup Auto Mode on C10325 Video



C3060 manual v1.0 (1036K)


8S 60A 1500W charger and BMS8T
Model: C6050A v2.0, C6050B v2.0

Specifications

  1. Input voltage: AC 90-265V
  2. Input RMS Current: 32A maximal
  3. Charge current: 1-55A, 3050W max.
  4. Battery Type:
    • 4S-13S LiPoly, Li-ion,
    • 5S-14S LiFePO4,
    • 7S-20S LiTo,
    • 10S-36S NiMh/NiCd,
    • 6S-22S Pb acid(VRLA)
  5. As power supply
    • 12-55V adjustable
    • 1-55A adjustable

C6050 manual v2.0 (716K)

C6050
Remote control charge current on C6050A
3000W 13S charger, 600A BMS, and 13S battery solution
C6050

AC and DC dual input balance Charger series

The latest AC and DC dual input balanc charger C4012B is released.
Welcome to enjoy CHARGERY balance charger and have a nice flight.

In past years, if need to charge and balance lithium battery pack, one power supply (AC-DC SMPS), and one balance charger (DC-DC buck and boost converter) is essential. The power supply power DC balance charger, and balance charger control charge voltage, charge current and balance cell voltage.
Chargery C4012B is 3 in 1 powerful balance charger, solve the difficulity and make charge and balance easier to do:
First, C4012B can work at power supply mode, as same as as AC-DC Power Supply to power DC balance charger.
Second, C4012B can charge and balance any lithium battery pack as same as DC-DC balance charger.
Third, C4012B can charge and balance any lithium battery pack at 40A 1500W when AC 100-240V input.

3 in 1 make the C4012B lower cost and easier to operate.


Main features:

  1. AC/DC dual input and identify automatically when AC / DC connected simultaneously
  2. 100W maxmial discharge need not any external load
  3. 1.2A balance curren per cell
  4. Over current protection
  5. Over voltage protection
  6. Charge power protection
  7. Over temperature protection
  8. Anti spark on battery connection
  9. Reverse polarity protection of battery connection
  10. Wrong battery connection protection when multi battery pack connected in series on adapter board.
  11. LCD display battery voltage, charge current, charging time, capacity charged
  12. Charge terminal voltage, terminal current and cell count is programmed
  13. Supports upgrading the firmware program by USB port.
1500W 12S 40A balance charger, AC / DC Dual input
C4012B
model : C4012B v1.27 updated to V1.30

Specifications

  1. Input voltage: DC 10-28V, 30V max. or AC 100-265V.
  2. Input Current: 25A maximal at DC input, and 15Arms at AC110V input
  3. Charge current: 0.1-20A, 500W max. at DC input,? or 1-40A, 1500W max. at AC input
  4. Discharge Current: 0.1-40A, 100W max.
  5. Accuracy of the cell voltage: -5mV/+5mV
  6. Balance current: 1.2A per cell only for LiPoly, Li-ion, LiTo and LiFePO4 battery pack
  7. Battery Type:1-12S LiPoly, Li-ion, LiHV, LiTo, LiFePO4, NiMh/NiCd, Pb acid(VRLA) battery pack



C4012B
Charge 12S LTO on balance charge mode Chargery C4012B manual v1.30(843K )

AC high voltage battery Charger series

Chargery released high voltage battery charger which is applied to 4 to 24S lipo, Lion, 5-28S LiFe cells, 7S-36S LiTo, 6S-41S lead acid battery (VRLA, GEM) and 10S-68SNIMH&NICD battery.

Main features:

  1. Over current protection
  2. Over voltage protection
  3. Charge power protection
  4. Over temperature protection
  5. Anti spark on battery connection even 100V battery connect to charger
  6. Reverse polarity protection of battery connection
  7. Prevent any cell from over charging, adjust charge current automatically fit with Chargey BMS
  8. LCD display battery voltage, charge current, charging time, capacity charged
  9. Charge terminal voltage, terminal current and cell count is programmed.
1500W 24S charger, 600A BMS, and 24S battery solution
1500Wcharger_BMS_24Sbattery
Model: C10325 v1.1, updated to V2.0 1500W 24S 25A battery charger is released

Specifications

  1. Input voltage: AC 90-265V
  2. Input RMS Current: 18A maximal
  3. Charge current: 1-25A, 1500W max.
  4. Battery Type:
    • 4S-24SLiPoly, Li-ion,
    • 5S-28SLiFePO4,
    • 7S-36S LiTo,
    • 10S-68S NiMh/NiCd,
    • 6S-41S Pb acid(VRLA)

C10325 can work on Auto mode and normal mode, on Auto mode, Connec to AC power or battery pack, the charger will start to charge automatically, need not any setup and other operation. to set up Auto mode,

please down load the video for details .



C10325
Setup Auto Mode on C10325 Video Chargery C10325 manual v2.0(629K )


Balance Charger series

Chargery released Balance charger and discharger which is applied to 1 to 10S lipo, Lion, LiFe cells, NIMH&NICD, and Pb battery (VRLA, lead battery).

Chargery improved the voltage accuracy t, under 5mV even up to 10S lipo cells, that help us to protect and manage each cell voltage during charge and discharge.

Unique balance algorithm realize up to 1.3A current draw from each cell

Creative circuit topology realize response quickly to any instantaneously changes on input and output voltage.

500W balance charger is updated to V1.12

Model: 5006B, 5008B, 50010B V1.12T new version support LiTo battery
  1. 10-28V DC input
  2. 0.1-20A charge, 500W max.
  3. Up to 10A discharge 35W max.
  4. 1.3A balance current per cell
  5. 5mV cell voltage accuracy
  6. Update firmware by USB port from PC
  7. Size£º154*114*33 (L¡ÁW¡ÁH, mm) or 6.1¡Á4.48¡Á1.3 (L¡ÁW¡ÁH, inch)

5006B,5008B,50010B manual v1.12T(751K )

500W 10S charger

Smart Balancer & BMS series

Chargery released BMS (Battery Management System), which is applied to 2 to 24S lipo & LiFe cells . We focus on developing the advanced balance technology to meet different applications.

Chargery improved the voltage accuracy to under 5mV, that help us to protect and manage each cell voltage and SOC.

BMS for up to 24S lipo & LiFe & LiTo cells is released

DC Contactor is released .

  • Rated operating voltage is 100V
  • Continuous (Carry) Current is up to 600A
  • Bi-directional connection, one DCC can be used in a Common port such as a Solar system, instead of two SSR's (Solid State Relays) or conventional relays. ?
  • The DCC has a Built-in the surge suppressing circuit, thereby eliminating the need for the additional Relay Delay Time board which is used to avoid a surge current when starting to charge or discharge. For other SSR's or mechanical relay, please consider the surge current potentials seriously and make a suitable plan for using a delay board as applicable.
  • Over temperature protection. If internal temperatures over heat, the contactor will shut off.
  • 1 Intelligent cooling fans turned on automatically

Update: fit with ISO board, the DCC can be istalled on battery positive, for details please check manual V1.1



DC contactor manual (1146K)

DC contactor manual v1.2(815K)

The ISO board is designed for DCC that can be installed on battery positive.

Cell impedance measurment when discharge or charge

Balancing in Stroage, yellow bar indicate balancing

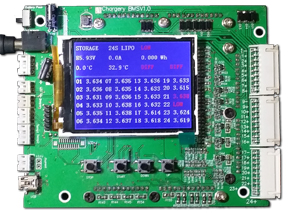

Model: BMS24T, for 2S-24S LiPo, LiFe & LiTo cell

old BMS24T has not com3 port on left panel, its Main unit final version is V1.18, LCD final version is V1.22v.

NEW main unit can be updated to V4.05, and NEW LCD uint can be updated to V4.02

  1. Up to 600A charge,
  2. Up to 600A discharge
  3. 1.2A balance current per cell
  4. Update firmware by USB port from PC
  5. Support regenerative braking, during braking operation can charge the batter pack and the discharge power (Wh) will decrease to response to the braking power.
BMS24T manual V4.2(3286K)
Down Load installation video.


Model: BMS16T, for 2S-16S LiPo, LiFe & LiTo cell

updated to V4.05

  1. Up to 600A charge,
  2. Up to 600A discharge
  3. 1.2A balance current per cell
  4. Update firmware by USB port from PC
  5. Communication with external device by RS232
  6. 12V 3A drove 600A DC contactor
  7. Support regenerative braking, during braking operation can charge the batter pack and the discharge power (Wh) will decrease to response to the braking power.
BMS16T manual V4.2(4046K )
Down Load installation video.


Model: BMS8T, for 2S-8S LiPo, LiFe & LiTo cell

updated to V4.05

  1. Up to 600A charge,
  2. Up to 600A discharge
  3. 1.2A balance current per cell
  4. Update firmware by USB port from PC
  5. Communication with external device by RS232
  6. 12V 3A drove 600A DC contactor
  7. Support regenerative braking, during braking operation can charge the batter pack and the discharge power (Wh) will decrease to response to the braking power.
BMS8T manual V4.2(3305K )
Down Load installation video.

To restrain surge current when battery discharge to motor, We design the relay driven delay time board. the board can close a small current relay first and then close a large curren relay after a programmabl delay time. it can apply to BMS16, BMS8T, BMS16T and BMS24T, relayDelay

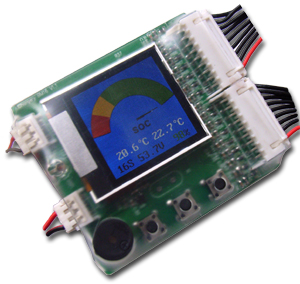

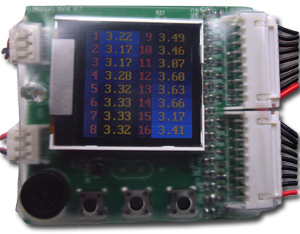

Model: BMS16, 2-16S, Update to V2.0 (blue case), 300A charge and discharge, 600A burst,

Special Features:

  1. The BMS16 uses advanced ADC measurement technology, high accuracy, high voltage and high current detection circuit. The maximum voltage measurements tolerance is within 5mV at up to 16S LiPo battery (69V)
  2. Charge/discharge current up to 300A.
  3. BMS16 calculate and display the charge and discharge power (Wh), generally the battery rated power is rated voltage multiply rated battery capacity.
  4. TFT LCD screen that provides rich information including current, voltage, power, capacity, control status, SOC and temperature and so on.
  5. BMS16 features a maximal safety protection, within the range parameters can be setup, BMS16 will alarm and cutoff charge or discharge according to users¡¯ setup, out of range of parameters, and trigged absolute maximum ratings BMS16 will force to cutoff charge or discharge to prevent the battery from fire.
  6. Minimize the power consumption by draw current from all cells or external power supply.
  7. Dual power design, the unit can be powered by all cells or external power supply.
  8. Detect cell count at any time, and compare with the count detected when switch on first time. If it is not uniformity, the device will alarm and cutoff charge or discharge according to users¡¯ setup, the feature can prevent any cell connection from loosing.
  9. Sound alarm and LED alarm will be triggered when any warning events happened, and then wait several seconds cut off or NOT charge or discharge. The delay time can be programmed.
  10. Charge relay and discharge relay are controlled independently.
  11. Two temperature sensors monitor battery temperature on different location.
  12. Supports upgrading the firmware program by USB port.
  13. BMS16 provide users the maximal flexibility, key parameters can be programmed.
  14. BMS16 display battery SOC or called battery gauge similar with car dashboard. Cell count, battery pack voltage and battery gauge (%) is displayed simultaneously.
  15. In case that the battery pack need not be charged and discharged, Press STOP button enter into sleep mode to save energy consumption. Charge and Discharge is cut off, LCD back light is off. Press any key to resume normal work mode.

BMS16 manualV1.16 (1385K )

BMS16 manualV2.0 (1580K )

b
SOC-dashboard
300Acurrent shunt


Testing report in German, click the following for details:
S600 Testing report in Germany.
S1200 testing report in Germany.
BEC testing report in Germany.

Testing Bericht in Deutsch, klicken Sie auf die following f¨¹r Details:
S600 Pr¨¹fbericht in Deutschland.
S1200 Testbericht in Deutschland.
BEC Pr¨¹fbericht in Deutschland.

Low Voltage 15A BEC released.



Model: CPBECLV

Charger BECLV takes input voltage up to 25V (6S) and steps it down to a user-selectable voltage, and withstand high current loads of 10Amps continuous.

  1. Input: 2S~6S LiPo battery
  2. Output: DC5.4V, 5.9V, 7.4V ,8.4V, 10A continue, 15A burst at under 12V input, and 8A continue, 12A burst at under 25V
  3. Short circuit protection on input and output
  4. Warranty of 6 months.

Chargery BECLV datasheet V1.0(174K)

Testing report in Germany by www.rc-heli-action.de (1620K) .


High Voltage 20A BEC released.

Model: CPBEC20A

Charger Super BEC is the most powerful Battery Eliminator Circuit in RC industry, it can handle high voltages up to 60V and withstand incredible high current loads of 20 Amps continuous in so small space. It is designed especial for digital Servo.

  1. Input: 3S~14S LiPo battery
  2. Output: DC5.5V, 6.0V, 7.4V ,8.4V, 20A continue, 25A burst at 8.4V
  3. 10V over voltage protection on output
  4. Short circuit protection on input and output
  5. Output power: 210W max.
  6. Warranty of 12 months.

Chargery Super BEC datasheet V1.0(270K)

Testing report in Germany by www.rc-heli-action.de (1620K) .


PFC power supply series

Model: S1500 v2.0

  1. No AC ON/OFF switcher, more reliable when start.
  2. 10-30V, large range output voltage adjustment
  3. 1.8" TFT color LCD display voltage, current and temperature, and output power.
  4. Up to 94% of convert efficiency.
  5. Smaller size and lighter than other brand
  6. Intelligent control output voltage and current by microprocessor, 100% calibration before delivery
  7. Active PFC: smaller AC input current less interference, and Conform to European Commission Regulation no 278/2009 and Energy Star Version 2.0
  8. AC 90-265V worldwide operation: need not any alternative switcher, worldwide safe operation.
  9. Low power consumption (less than 1W) at idle mode.
  10. Over current, over voltage, over load, over temperature, and short circuit protection
  11. Short-circuit protection on output, safer and more reliable.
  12. 2 Intelligent cooling fans turned on upon the temperature automatically
  13. 4 outputs can do more chargers simultaneously, 3 pairs 4.0mm gold connector up to 20A each output, one 4.5mm gold connector (XT-90) up to 60A
  14. High power density: 652W/Kg
  15. Start at no load or full load
  16. Approved by CE
  17. 24 months warranty

Testing report in German by www.rc-network.de

S1500 user's manual v1.1 (288K)

S1500 user's manual v2.0 (292K)

S1500 v2.0
S1500 power off

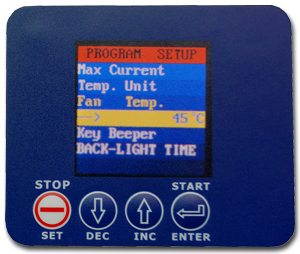

setup

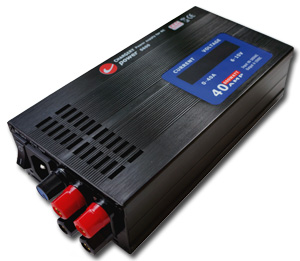

Model: S600PLUS V2.0

  1. Conform to European Commission Regulation no 278/2009 and Energy Star Version 2.0
  2. AC100 ~ 265V input, world wide use
  3. Active PFC: PF>0.99 at 90VAC 100% of load
  4. DC5.0V ~ 26.0V output adjustable for most of applications
  5. Up to 91% of efficiency at 60% of load and AC220V
  6. Digital display output voltage and current on time.
  7. Over current, over voltage, over load and over temperature protection. Resume automatically when troubleshooting.
  8. Short-circuit protection on output, safer and more reliable.
  9. Intelligent cooling fans, adjust speed automatically
  10. 2 outputs can do more chargers or other DC powered device simultaneously.
  11. USB 5V 500mA output
  12. Warranty of 12 months.

S600PLUS user's manual V2.0 (1688K)

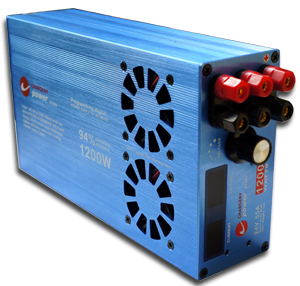

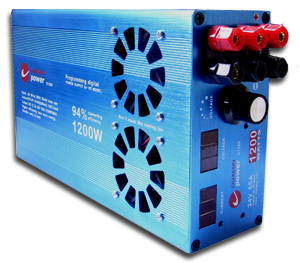

Model: S1200 v3.0

  1. Conform to European Commission Regulation no 278/2009 and Energy Star Version 2.0
  2. AC90 ~ 265V input, world wide use
  3. Active PFC: PF>0.99 at 90VAC 100% of load
  4. DC11.5V ~ 24.5V output adjustable for most of applications
  5. Up to 94% of efficiency at 60% of load and AC220V
  6. Digital display output voltage and current on time.
  7. Over current, over voltage, over load and over temperature protection. Resume automatically when troubleshooting.
  8. Short-circuit protection on output, safer and more reliable.
  9. 3 Intelligent cooling fans turned on at over 50¡æ
  10. 3 outputs can do more chargers or other DC powered device simultaneously.
  11. Warranty of 24 months.

Chargery S1200 user's manual v3.0(179K)

Testing report in Germany by www.mfi-magazin.com (907K) .

S1200 power 3 chargers simultaneously video on you tube

Testing report in German by www.elektromodellflug.de



Feel free to search, email or call us for further information about CHARGERY and products .

Ö÷Ò³

chargery  power

Home | Products & Solutions | Feedback | About | Contact

Chargery Power Co.,Ltd. Copyright 2006-2023, All rights reserved. welcome to www.chargery.com
ÔÁICP±¸09018172ºÅ
