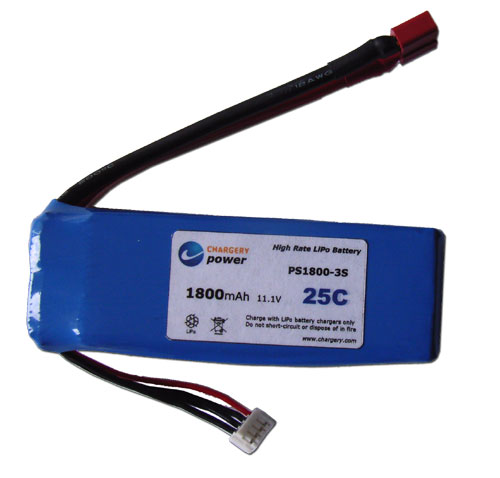

 High Rate LiPo Battery |
|
Some electric devices have to be driven with very large current, such as EV, R/C airplane, helicopters, car and boats, and electric tools etc.
Our latest lipo battery pack can be discharged at up to 35C, and to be charged at up to 4C. |
 |
| High Rate LiPo Battery made by CHARGERY is mainly applied to R/C model, Electronic Vehicle and power tools. |
| The following models are mainly applied to R/C model, these models are one part of our products, and customized capacity and size could be available upon your requests. For detailed specifications, please contact us. |
| The output connector of the battery pack can be customized. what you need is to tell us the number on the right photo. If there is no what you want, fell free to email us. |
 |
| Chargery power "High Supreme" series LiPo battery pack |
|
The "High Supreme" series is the latest and highest discharge rate lipo battery, it can discharge continuously at 33C-35C, and the maximal discharge current even reaches 60C.
The series of battery pack can be charged at up to 4C. |
Model |
Normal Voltage /V |
Rated Capacity/mAh |
Connector |
Size /mm |
Weight /g |
Charger Model |
Length |
Width |
Thickness |
PHS1300-2S |
7.4 |
1300 |
3 PIN |
85 |
35 |
13 |
76 |
320B, 550B, 620B, 630B, 680B, 680B+, 1010B |
PHS1300-3S |
11.1 |
1300 |
4 PIN |
85 |
35 |
19.5 |
109 |
PHS1300-4S |
14.8 |
1300 |
5 PIN |
85 |
35 |
26 |
142 |
PHS1300-5S |
18.5 |
1300 |
6 PIN |
85 |
35 |
32.5 |
175 |
PHS1300-6S |
22.2 |
1300 |
7 PIN |
85 |
35 |
39 |
208 |
|
|
PHS1600-2S |
7.4 |
1600 |
3 PIN |
107 |
35 |
13 |
89 |
320B, 550B, 620B, 630B, 680B, 680B+, 1010B |
|
11.1 |
1600 |
4 PIN |
107 |
35 |
19.5 |
128 |
|
14.8 |
1600 |
5 PIN |
107 |
35 |
26 |
168 |
|
18.5 |
1600 |
6 PIN |
107 |
35 |
32.5 |
208 |
PHS1600-6S |
22.2 |
1600 |
7 PIN |
107 |
35 |
39 |
248 |
| |
PHS1800-2S |
7.4 |
1800 |
3 PIN |
107 |
35 |
14 |
113 |
320B, 550B, 620B, 630B, 680B, 680B+, 1010B |
|
11.1 |
1800 |
4 PIN |
107 |
35 |
22 |
159 |
|
14.8 |
1800 |
5 PIN |
107 |
35 |
29 |
206 |
|
18.5 |
1800 |
6 PIN |
107 |
35 |
36 |
259 |
PHS1800-6S |
22.2 |
1800 |
7 PIN |
107 |
35 |
43 |
309 |
|
|
PHS2200-2S |
7.4 |
2200 |
3 PIN |
107 |
35 |
16 |
120 |
320B, 550B, 620B, 630B, 680B, 680B+, 1010B |
PHS2200-3S |
11.1 |
2200 |
4 PIN |
107 |
35 |
24 |
175 |
PHS2200-4S |
14.8 |
2200 |
5 PIN |
107 |
35 |
32 |
230 |
PHS2200-5S |
18.5 |
2200 |
6 PIN |
107 |
35 |
40 |
285 |
PHS2200-6S |
22.2 |
2200 |
7 PIN |
107 |
35 |
48 |
340 |
| |
PHS2600-2S |
7.4 |
2600 |
3 PIN |
140 |
44 |
11 |
142 |
320B, 550B, 620B, 630B, 680B, 680B+, 1010B |
|
11.1 |
2600 |
4 PIN |
140 |
44 |
16.5 |
208 |
|
14.8 |
2600 |
5 PIN |
140 |
44 |
22 |
274 |
|
18.5 |
2600 |
6 PIN |
140 |
44 |
28.5 |
340 |

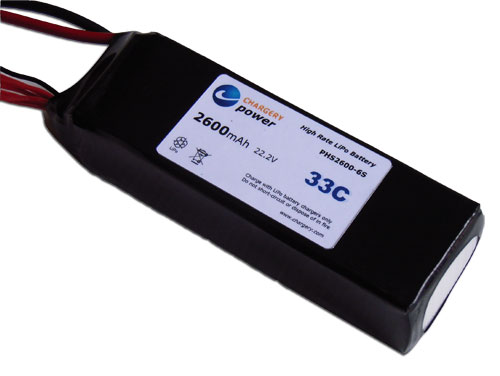

PHS2600-6S |
22.2 |
2600 |
7 PIN |
140 |
44 |
34 |
404 |
| |
PHS3300-2S |
7.4 |
3300 |
3 PIN |
143 |
45 |
15 |
182 |
320B, 550B, 620B, 630B, 680B, 680B+, 1010B |
PHS3300-3S |
11.1 |
3300 |
4 PIN |
143 |
45 |
22.,5 |
262 |
PHS3300-4S |
14.8 |
3300 |
5 PIN |
143 |
45 |
30 |
341 |
PHS3300-5S |
18.5 |
3300 |
6 PIN |
143 |
45 |
37.5 |
419 |
PHS3300-6S |
22.2 |
3300 |
7 PIN |
143 |
45 |
45 |
499 |
| |
PHS4000-2S |
7.4 |
4000 |
3 PIN |
143 |
44 |
16 |
216 |
320B, 550B, 620B, 630B, 680B, 680B+, 1010B |
PHS4000-3S |
11.1 |
4000 |
4 PIN |
143 |
44 |
23.5 |
314 |
PHS4000-4S |
14.8 |
4000 |
5 PIN |
143 |
44 |
31 |
412 |
PHS4000-5S |
18.5 |
4000 |
6 PIN |
143 |
44 |
39 |
510 |
PHS4000-6S |
22.2 |
4000 |
7 PIN |
143 |
44 |
46 |
608 |
| |
PHS4500-2S |
7.4 |
4500 |
3 PIN |
162 |
44 |
17 |
244 |
320B, 550B, 620B, 630B, 680B, 680B+, 1010B |
PHS4500-3S |
11.1 |
4500 |
4 PIN |
162 |
44 |
25 |
356 |
PHS4500-4S |
14.8 |
4500 |
5 PIN |
162 |
44 |
33 |
468 |
PHS4500-5S |
18.5 |
4500 |
6 PIN |
166 |
44 |
41 |
580 |
PHS4500-6S |
22.2 |
4500 |
7 PIN |
166 |
44 |
49 |
692 |
PHS4500-12S |
44.4 |
4500 |
2*7 PIN |
296 |
47 |
50 |
1374 |
| |
PHS5000-2S |
7.4 |
5000 |
3 PIN |
162 |
44 |
18 |
268 |
320B, 550B, 620B, 630B, 680B, 680B+, 1010B |
PHS5000-3S |
11.1 |
5000 |
4 PIN |
162 |
44 |
29 |
394 |
PHS5000-4S |
14.8 |
5000 |
5 PIN |
162 |
44 |
40 |
520 |
PHS5000-5S |
18.5 |
5000 |
6 PIN |
162 |
44 |
51 |
646 |
PHS5000-6S |
22.2 |
5000 |
7 PIN |
162 |
44 |
62 |
772 |
| |
|
|
|
|
|
|
|
|
Note: 320B, 620B, 550B, 630B, 680B, 680B+ and 1010B are balance charger.The battery has to be mounted with the balance connector to use the unit.
The battery weight includes the power leads and connector, it is estimated.
|
|
|
The typical discharge curve at different rate ( cell model: PHS4500-1S) |
 |
| |
|
|
